ホーム /製品/リモコン・コントロール・ブザー/Factory hot sale active type plastic 12*7.5mm smd magnetic buzzer 1.5~4VDC piezo magnetic buzzer

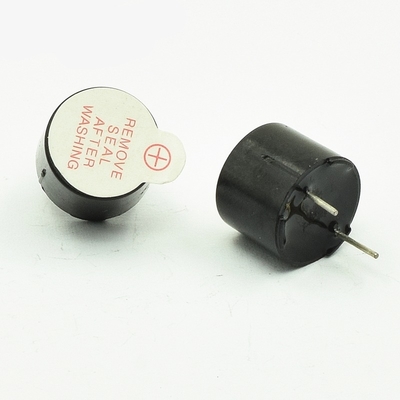

Factory hot sale active type plastic 12*7.5mm smd magnetic buzzer 1.5~4VDC piezo magnetic buzzer

100.0 Pieces
MOQ
Factory hot sale active type plastic 12*7.5mm smd magnetic buzzer 1.5~4VDC piezo magnetic buzzer
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: IST-ES12A27P05
Type: Buzzer
D/C: IST-ES12A27P05
Material: Plastic
Color: Black
Voltage - Rated: 5 VDC
Frequency: 2700±300Hz
Technology: Magnetic
Operating Mode: Single Tone
Size / Dimension: 12 * 7.5mm
Part Number: IST-ES12A27P05
Dimension: 12 * 7.5mm
Rated Voltage: 3VDC
Resonant Frequency: 2700±300Hz
SPL: ≥87dB@10cm
Current: ≤30mA
Operating Voltage: 1.5~4VDC
基本情報
Model Number: IST-ES12A27P05
お支払配送条件
Packaging Details: Export standard packing
Supply Ability: 10000 Piece/Pieces per Day
製品の説明
Product Description
1
Rated voltage
5VDC
2
Operation voltage
3～7VDC
3
Sound Pressure Level=SPL
Min 87dB
Standard State,Standard Drive Circuit.
Rated voltage,Distance at 0.1m
4
current
≤ 30mA
5
Oscillation frequency
2700±300Hz
6
Response time
Max 50mS
Lowest operation voltage
7
Range of operation temperature
-40～+85℃
SPL ≥82dB
8
Range of preservation temperature
-40～+85℃
9
Terminal strength
10N
Pull load on the direction of the terminal axis
10
Externals size
Φ12x7.5
Refer to the attached drawing
11
Mass
2g
Company Profile
Changzhou ISensor Technology Co., Ltd. is a professional manufacturer engaged in research and development, production and sales of various kinds of electro-acoustic components, its own brand (ISensor) products: ultrasonic sensors, buzzers, speakers, etc., specifications and models of more than 300 kinds. Founded in 2015, the company covers an area of more than 6,000 square meters, employs nearly 160 people, has a professional and experienced R & D personnel and technical engineering team, has advanced automation production equipments and testing instruments. In line with the management guiding ideology of "customer satisfaction", the company attaches great importance to quality control and quality management, and fully introduces the ROHS standard to produce products, and has obtained ISO9001:2015 and SGS,CE,REACH and other product certifications. ISensor has a wide range of products used in household appliances, watches, toys, instruments and meters, alarm system, reversing radar, GPS and ultrasonic ranging and other fields. We have been based on the domestic and foreign markets, product quality and price competitive, "Customer Oriented Service" is our faith we have been adhering to, and we believe that your an attempt will achieve our permanent cooperation!
Why Choose Us
Product Show
Packing&Shipping
FAQ
Q1: Could I get some samples for testing first?
A1: Yes, definitely you can. After confirming your specific requirements, we will quote and discuss with you about the samples.

Q2: Could you customize the products according to my special requirements?
A2: Yes. We are capable of customizing the products according to your specific performance requirements.

Q3: What's your lead time?
A3: Generally speaking, sample order 3-7 working days; bulk order 15-25 working days, a little bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders.

Q4: How does your factory control the product quality?
A4: Quality is the top priority. We always attach great importance to quality control from the beginning to the end of production according to ISO9001. Every product will be fully assembled and carefully tested before packed.

Q5: When can I get a price？
A5: We usually quote within 24 hours after we get your inquiry.
