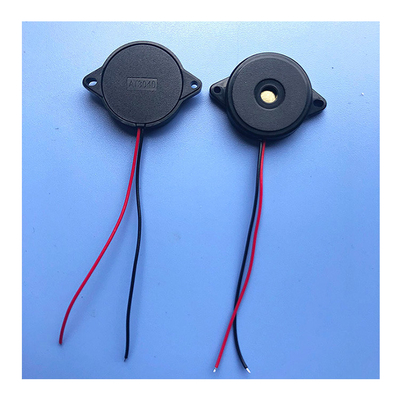

LCP 30*5.5mm Passive AC 5V External Driven Magnetic Transduce Piezo Buzzer AT3040

1 Piece

MOQ

$0.12(1 - 999 Pieces) $0.10(1000 - 4999 Pieces) $0.09(5000 - 49999 Pieces) $0.08(>=50000 Pieces)

価格

LCP 30*5.5mm Passive AC 5V External Driven Magnetic Transduce Piezo Buzzer AT3040

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: YNR-30055W

Type: Buzzer, Buzzer

Material: LCP, LCP

Color: Black, Black

Input Type: AC, AC

Voltage - Rated: 5V

Voltage Range: 1-30V

Frequency: 4000Hz, 4000HZ

Technology: Piezo, Piezo

Operating Mode: Single Tone

Operating Temperature: -10Â°C ~ 60Â°C, -10Â°C ~ 60Â°C

Mounting Type: Through Hole

Termination: Surface Mount

Size / Dimension: 30*5.5mm

Height - Seated (Max): 5.5mm

Voltage - Input (Max): 30V p-p

Impedance: 25Â±40% n F

Frequency Range: 4000Hz

Height (Max): 5.5mm

Efficiency - Type: Sound Pressure Level (SPL)

Rated Voltage: 5V

Product Name: AC 5V Passive External Driven Magnetic Transduce Piezo Buzzer

Install: Through Hole

Rated Voltage:: 5V, 12V, 24V

基本情報

Model Number: YNR-30055W

お支払配送条件

Packaging Details: Packaging in one Box

Supply Ability: 100000 Piece/Pieces per Week

製品の説明

View More>>

30*5.5mm AC 5V Passive External Driven Magnetic Transduce Piezo Buzzer

Products Description

Product Name	5V Passive External Driven Magnetic Transduce Piezo Buzzer
Type	Piezo Buzzer
Rated Voltage(square wave)	Max.3mA Max.5mA Max.5mA
Sound Output at 10cm	Min. 80dB Min. 85dB Min. 85dB
Operating Voltage	1~30Vo-p
Operating Temperature	-10℃～+60℃
Storage Temperature	-20℃～+70℃
Rated Frequency	4000Hz
Capacitance at 120Hz	25±40% n F
Tone	Constant

1. Piezo Buzzer Dimensions

2. Piezo Buzzer Test Circuit

3. Piezo Buzzer Frequency Response

4. Piezo Buzzer Test Condition
