ホーム /製品/防水ピエゾバザー/30*15mm 30*15mm DC 12V Micro Active Min 85dB Mini Piezo Buzzer With Wire

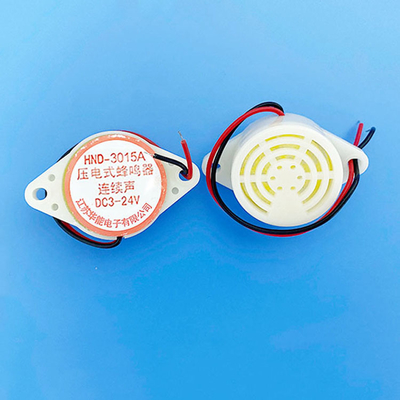

3015mm 3015mm DC 12V Micro Active Min 85dB Mini Piezo Buzzer With Wire

1 Piece

MOQ

$0.50(1 - 999 Pieces) $0.33(1000 - 4999 Pieces) $0.30(5000 - 49999 Pieces) $0.28(>=50000 Pieces)

価格

30*15mm 30*15mm DC 12V Micro Active Min 85dB Mini Piezo Buzzer With Wire

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: YND-3015A

Type: Buzzer, Buzzer

D/C: 20210506

Color: Black, Black

Input Type: DC, DC

Voltage Range: 3-24V

Frequency: 3300Â±500Hz, 3300Â±500Hz

Technology: Piezo

Operating Temperature: -20Â°C ~ 80Â°C, -20Â°C ~ 80Â°C

Mounting Type: Through Hole

Size / Dimension: 30*15mm

Height - Seated (Max): 15MM

Voltage - Input (Max): 24V

Height (Max): 15mm

Product Name: DC 12V Active Min 85dB Micro Mini Piezo Buzzer With Wire

Response time: Max 50mS

Max Input Voltage: 24V

3500Â±500Hz: 10N

Sound Pressure Level: Min 85dB

基本情報

Model Number: YND-3015A

お支払配送条件

Packaging Details: Packaging in one Box

Supply Ability: 100000 Piece/Pieces per Week

製品の説明

View More>>

30*15mm DC 12V Active Min 85dB Micro Mini Piezo Buzzer With Wire

Products Description

Product Name	DC 12V Active Min 85dB Micro Mini Waterproof Piezo Buzzer
Type	Piezo Buzzer
Max Input Voltage	24V
Storage Temperature	-30°C ~ 85°C
Operating Temperature	-20°C ~ 80°C
Sound Output at 10cm (dB)	Min 85dB, Typical 90dB
Max 50mS	Max 50mS
Resonance Frequency	3300±500Hz
Terminal strength	10N
Technolgy	Piezo

1. Piezo Buzzer Dimensions

2. Piezo Buzzer Test Circuit

3. Piezo Buzzer Frequency Response
