ホーム /製品/smdのpiezoブザー/LCP 10*2.5mm AC 5V 12V Loudspeaker Sounder Passive Electronic Magnetic Piezo Alarm Buzzer

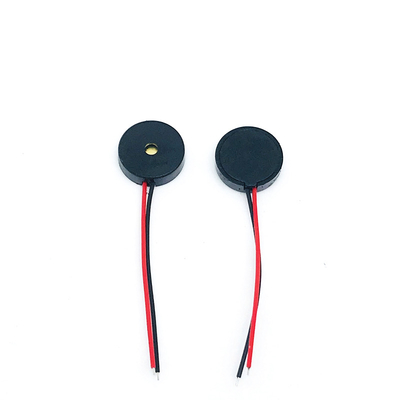

LCP 10*2.5mm AC 5V 12V Loudspeaker Sounder Passive Electronic Magnetic Piezo Alarm Buzzer

1 Piece

MOQ

$0.15(1 - 999 Pieces) $0.12(1000 - 4999 Pieces) $0.11(5000 - 49999 Pieces) $0.10(>=50000 Pieces)

価格

LCP 10*2.5mm AC 5V 12V Loudspeaker Sounder Passive Electronic Magnetic Piezo Alarm Buzzer

特徴ギャラリー製品の説明見積依頼

特徴

仕様

Model Number: YNR-10025W

Type: Speaker, Buzzer

Material: LCP, LCP

Color: Black, Black

Input Type: AC, AC

Voltage - Rated: 5V, 12V

Voltage Range: 1-25V

Frequency: 4000Hz, 4000HZ

Technology: Piezo, Piezo

Operating Mode: Single Tone

Operating Temperature: -10Â°C ~ 60Â°C, -10Â°C ~ 60Â°C

Mounting Type: Through Hole

Termination: Surface Mount

Size / Dimension: 10*2.5mm

Height - Seated (Max): 2.5mm

Voltage - Input (Max): 25V p-p

Impedance: 6Â±40% n F

Height (Max): 2.5mm

Efficiency - Type: Sound Pressure Level (SPL)

Rated Voltage: 5V

Product Name: 5V Speaker Sounder Passive Electronic Magnetic Alarm Piezo Buzzer

Install: Through Hole

Rated Voltage:: 5V, 12V

基本情報

Model Number: YNR-10025W

お支払配送条件

Packaging Details: Packaging in one Box

Supply Ability: 100000 Piece/Pieces per Week

製品の説明

View More>>

10*2.5mm AC 5V Speaker Sounder Passive Electronic Magnetic Alarm Piezo Buzzer

Products Description

Product Name	Speaker Sounder Passive Electronic Magnetic Alarm Piezo Buzzer
Type	Piezo Buzzer
Rated Voltage(square wave)	Max.3mA Max.5mA Max.5mA
Sound Output at 10cm	Min. 65dB Min. 70dB Min. 70dB
Operating Voltage	1~25Vo-p
Operating Temperature	-10℃～+60℃
Storage Temperature	-20℃～+70℃
Rated Frequency	4000Hz
Capacitance at 120Hz	6±40% n F
Tone	Constant

1. Piezo Buzzer Dimensions

2. Piezo Buzzer Test Circuit

3. Piezo Buzzer Frequency Response

4. Piezo Buzzer Condition
