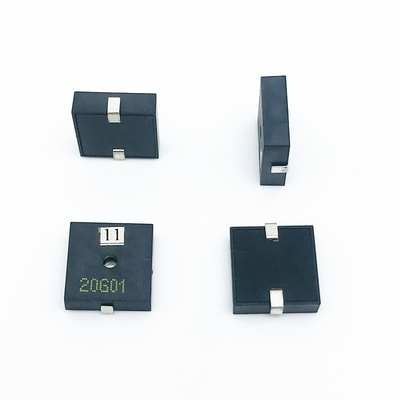

Sounder LCP Plastic 14*4mm AC 5V 12V Passive Speaker Piezo Alarm System SMD Buzzer

1 Piece
MOQ
$0.40(1 - 999 Pieces) $0.37(1000 - 4999 Pieces) $0.36(5000 - 49999 Pieces) $0.35(>=50000 Pieces)
価格
Sounder LCP Plastic 14*4mm AC 5V 12V Passive Speaker Piezo Alarm System SMD Buzzer
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: YNT-14040
Type: Buzzer, Buzzer
D/C: 20210506
Material: LCP Plastic, LCP Plastic Resin
Color: Black, Black
Input Type: AC, AC
Voltage - Rated: 5V
Voltage Range: 2~25Vo-p
Frequency: 4000Hz, 4000Hz
Technology: Piezo, SMD Piezo
Operating Mode: Single Tone
Current - Supply: 80MA
Operating Temperature: -20℃~+70℃, -20℃~+70℃
Mounting Type: Surface Mount
Size / Dimension: 14*4.3mm
Height - Seated (Max): 4.3MM
Voltage - Input (Max): 25V
Height (Max): 4.3mm
Rated Voltage: 5V
Product Name: 5V Passive Speaker Sounder Alarm System Magnetic SMD Piezo Buzzer
Install: Surface Mount
Rated Voltage:: 3V, 5V, 12V
基本情報
Model Number: YNT-14040
お支払配送条件
Packaging Details: Packaging in one Box
Supply Ability: 100000 Piece/Pieces per Week
製品の説明
View More>>
14*4.3mm AC 5V 12V Passive Speaker Sounder Alarm System SMD Piezo Buzzer
Products Description
Product Name
Speaker Sounder Alarm System Magnetic SMD Piezo Buzzer
Type
Buzzer
Rated Voltage
3V, 5V, 12V
Operating Voltage
2V-25V
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
Rated Current
Max.3mA;Max.3mA;Max.5mA
Sound Output at 10cm(dB)
Min. 70dB;Min. 75dB;Min. 80dB
Capacitance at 120Hz
11±40% n F
Oscillation Frequency
4000Hz
Input Type
AC
Technolgy
SMD Piezo
1. SMD Buzzer Dimensions
2. SMD Buzzer Test Circuit
3. SMD Buzzer Frequency Response
4. SMD Buzzer Packing

Contact Us Now!
Hot Sale
Company Profile
Guangzhou Yueneng Technology Co., Ltd. is located in Yuexiu District, Guangzhou City, Guangdong Province, the business capital of a thousand years. We can provide SMD buzzers, piezoelectric buzzers, electromagnetic buzzers, speakers, receivers, microphone piezoelectric components and other products. Since 1994, we have been focusing on the research, development and production of acoustic components, and continue to provide high-quality products, competitive prices and reliable services. The company strictly implements ISO9001 and QS9000, and strengthens the control system. Our products are widely used in electrical appliances, such as MP3 players, MP4 players, security systems, medical equipment, etc. The company has more than 6,000 square meters of workshops, more than 260 skilled workers, and more than 30 experienced engineers. Most of the products are exported to the United States, Europe and Southeast Asia. We believe that Yueneng Technology will create a perfect future with you.
Certifications
FAQ
Q1: Could I have samples for testing first?
A1: Yes. definitely you can. We can even send you free sample and you should only pay for the shipping fee.

Q2: How long is the production lead time/delivery time?
A2: We will send sample to you within 3 days.
Production for big quantity needs about 20 days. And it also depends on product and quantity.

Q3: What about terms of payment?

A3: Payment terms: T/T, West Union, Paypal and L/C etc.

Q4: What is your MOQ?
A4 :We don’s requested MOQ for each model, but the more quantity cost will be more cost-effective .

Q5: How will you control product quality?
A5: We strictly control every details of production, and every product is inspected by our QC team before delivery.

Q6: Are you trading company or manufacturer ?
A6: We are buzzer manufactory.

Q7: Can you solve technical problems for us?
A7: Yes, Our technical team will try our best to support you.

Q8: Could you provide specifications and technical support?
A8 :We have a series of specifications to support you for free!Contact Us Now!
